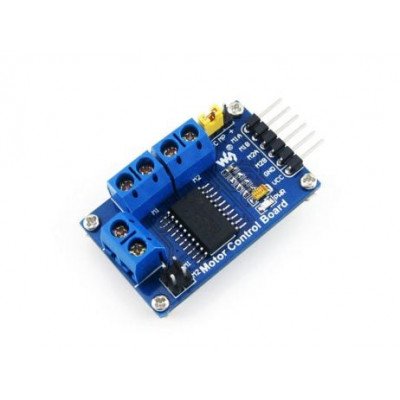

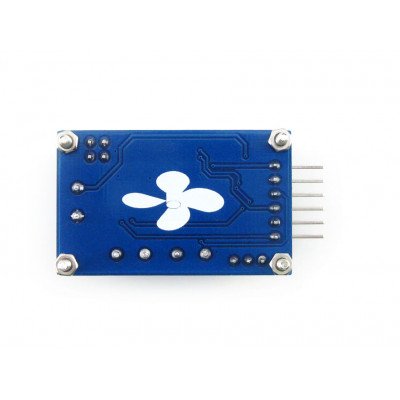

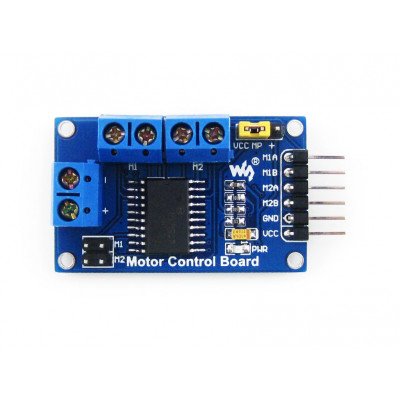

This is a Waveshare Motor Control Board. The Control Board consists of onboard dual H-bridge driver L293D. Its easy to use Arduino or another development platform to drive the motor by this diver board. The motor driver drives 2 DC motors or 1 stepping motor at one time.
How to Use:
- M1A/M1B: connects to MCU digital IO, motor1 rotation controlling
- M2A/M2B: connects to MCU digital IO, motor2 rotation controlling
- GND: ground
- VCC: 5V power supply
| M1A/M2A | M1B/M2B | M1/M2 |
| 1 | 0 | Counterclockwise/Clockwise |
| 0 | 1 | Clockwise/Counterclockwise |
| 1 | 1 | Stop |
| 0 | 0 | Stop |
Features:
- Onboard dual H-bridge driver L293D
- Drives 2 DC motors or 1 stepping motor at one time
- 600mA output current (peak 1.2A) per single bridge
- ESD protection
