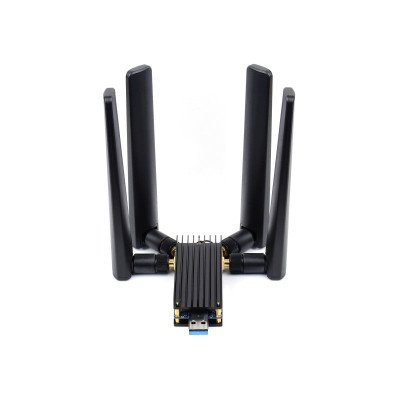

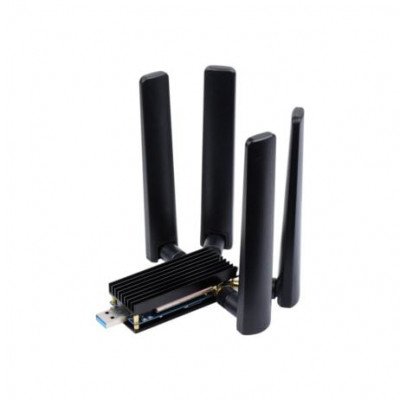

The Waveshare 5G DONGLE Module is a wireless communication module designed to provide high-speed internet connectivity through 5G networks. It is equipped with four antennas that enable it to achieve high-speed data transmission and reliable signal reception.
The module comes with a USB 3.1 port, which can be used to connect it to a device such as a laptop or a desktop computer. The USB 3.1 port is backward compatible with USB 2.0 and USB 1.1 ports, allowing it to be used with a wide range of devices.
Features:

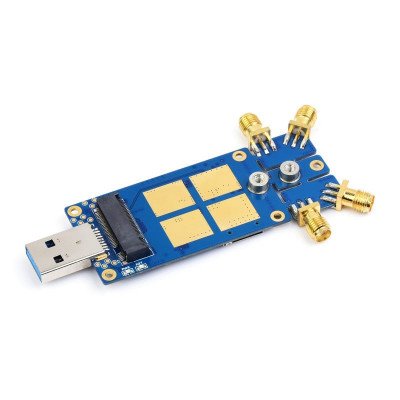

- Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom and Quectel 5G modules
- Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
- USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high-speed 5G network
- 4x SMA antenna connectors, easy to install the antenna
- Onboard SIM card slot for NANO SIM card
- Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
- PCB ENIG process reserved multi slots and positioning holes for integration
- Comes with a customized aluminum alloy heatsink, good heat dissipation, and a nice-looking, protective and durable
