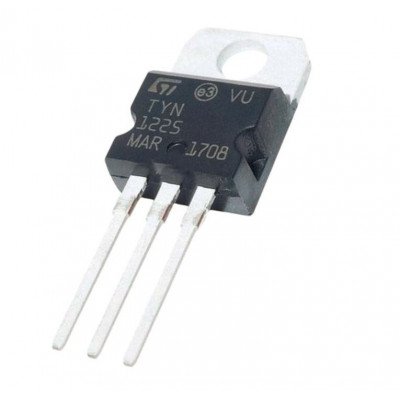

The TYN1225 SCR standard 25 A SCRs are suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities.
Features:-
- On-state rms current, IT(RMS) 25 A
- Repetitive peak off-state voltage, VDRM/VRRM 600 to 1200 V
- Triggering gate current, IGT 40 mA
- Insulated package TO-220AB ins – Insulating voltage 2500 V rms – UL1557 certified
