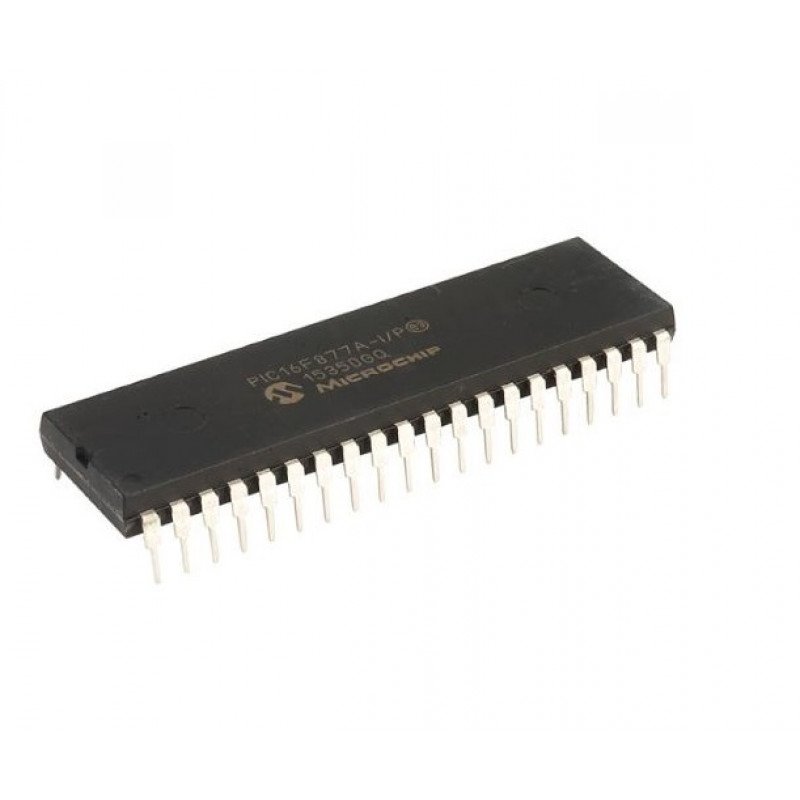

The PIC16F877A is a 28/40/44-pin Enhanced Flash Microcontroller, ideal for a wide range of embedded applications. Key features include:
-
Timer0: 8-bit timer/counter with an 8-bit prescaler
-
Timer1: 16-bit timer/counter with prescaler; can operate during Sleep using an external crystal or clock
-
Timer2: 8-bit timer/counter with an 8-bit period register, prescaler, and postscaler
-
Two Capture/Compare/PWM (CCP) Modules:
-
16-bit Capture with 12.5 ns resolution
-
16-bit Compare with 200 ns resolution
-
PWM with up to 10-bit resolution
-
-
Synchronous Serial Port (SSP) supporting SPI (Master mode) and I²C™ (Master/Slave mode)
-
USART/SCI: Full-duplex serial communication with 9-bit address detection
-
Parallel Slave Port (PSP): 8-bit wide with external RD, WR, and CS controls (available on 40/44-pin versions only)
-
Brown-out Reset (BOR): Integrated brown-out detection for reliable power monitoring
