Applications:
- High-end industrial machinery
- Laboratory equipment
- Computer vision
- PLCs
- Industry-ready user interfaces, etc.
Features:
- High-end industrial machinery
- Laboratory equipment
- Computer vision
- PLCs
- Industry-ready user interfaces
- Robotics controller
- Mission-critical devices
- Dedicated stationary computer
- High-speed booting computation (ms)
Additional information
| Model |

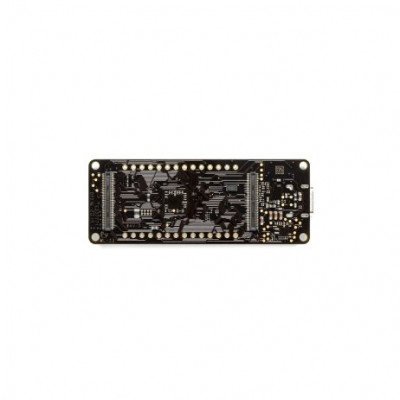

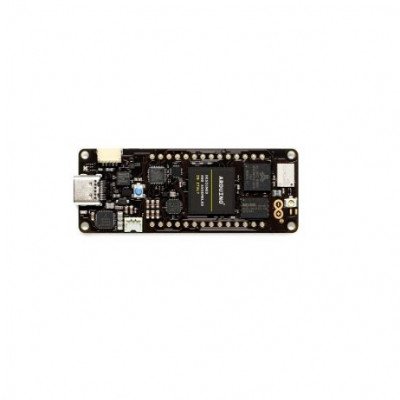

Arduio Pro Portenta H7 |
| Main Prosessor |
STM32H747XI dual Cortex-M7+M4 32bit low power Arm MCU |
| SDRAM |
8-64 MByte option |
| QSPI Flash |
2-128 MByte option |
| Ethernet |
10/100 Phy option |
| Wireless |
BT5.0 + WiFi 802.11 b/g/n 65Mbps option |
| Crypto Chip |
ECC608 or SE050C2 (Common Criteria EAL 6+) option |
| Display Connector |
MIPI DSI host & MIPI D-PHY to interface with low-pin count large displays |
| GPU |
Chrom-ART graphical hardware Accelerator |
| Timers |
22x timers and watchdogs |
| UART |
4x ports (2 with flow control) |
| SD CARD |
Interface for SD Card connector (through expansion port only) |
| OPerating Temperature |
-40 C to +85 C |
| Power |
Through USB-C connector or LiPo battery (integrated charger) |
| Current Consumption |
2.95 A in Standby mode (Backup SRAM OFF, RTC/LSE ON) |
| USB-C |
Host / Device, DisplayPort out, High / Full Speed, Power delivery |
| MKR Headers |
Use any of the existing industrial MKR shields on it |
| High Density Connectivity |
Two 80 pin connectors will expose all of the board's peripherals to other devices |
| ESLOV Connector |
Arduino's open connector standard for self-identifiable hardware |
| Camera Interface |
8-bit, up to 80 MHz |
| ADC |
ADC 3 ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS) |
| DAC |
DAC 2 12-bit DAC (1 MHz) |
