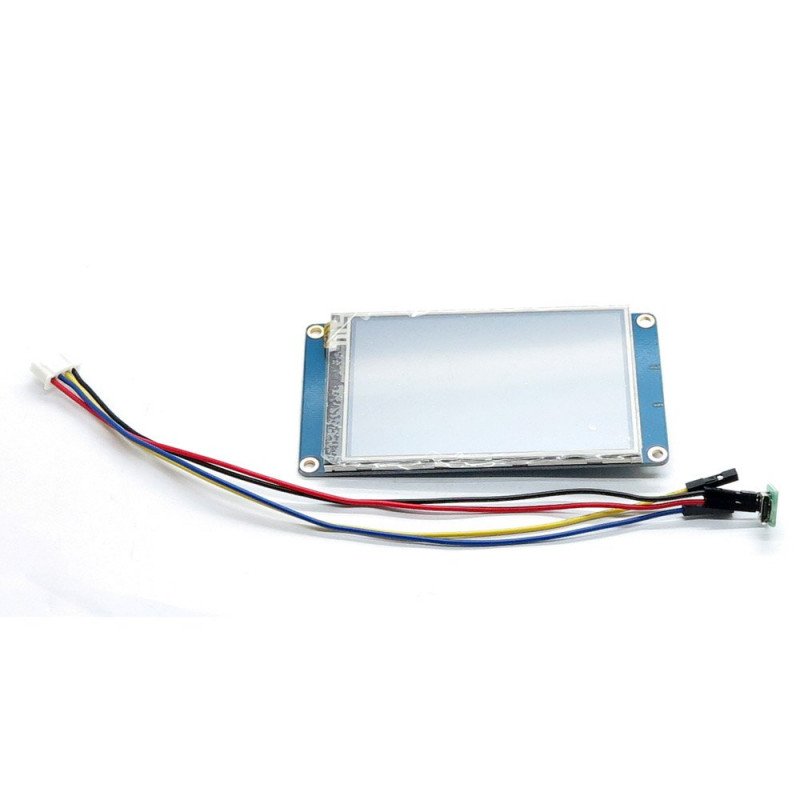

Nextion NX4832T035 – 3.5" HMI TFT LCD Touch Display Module
The Nextion NX4832T035 is a 3.5-inch intelligent HMI (Human Machine Interface) touch display that provides a seamless bridge between users and machines, applications, or processes. Commonly used in IoT and consumer electronics projects, it offers a modern and efficient alternative to traditional LCDs and LED Nixie tubes.
This HMI solution combines both hardware—a 480×320 TFT resistive touchscreen—and software via the intuitive Nextion Editor. Communication is simplified using a single TTL UART interface (5V, TX, RX, GND), reducing wiring and integration complexity across a wide range of microcontroller platforms.
The powerful Nextion Editor features a drag-and-drop WYSIWYG environment loaded with GUI components such as buttons, text fields, sliders, progress bars, and gauges. This drastically reduces programming effort and cuts development time by up to 99%, making interface design accessible even for beginners.
Easy to integrate into both new and existing projects, the NX4832T035 offers a reliable, cost-effective solution for creating rich user interfaces with minimal coding.
