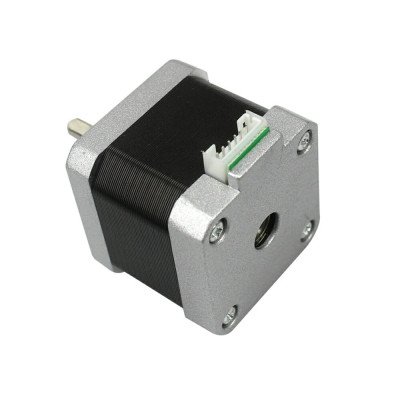

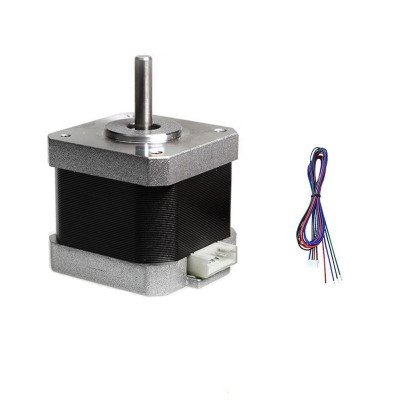

Features :
- Input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing.
- Control of this motor is less costly because of exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
Specifications :
Model |
NEMA 17 |
Motor Type |
Single Shaft |
Step Angle |
1.8 |
Holding Torque (Kg-Cm) |
5.6 |
Operating Voltage (VDC) |
3.1 |
Supply Current (A) |
1.2 A/Phase |
No. of Leads |
4 |
Inductance (mH/Phase) |
3.2 |
Rotor Inertia (gm-cm2) |
54 |
Weight (gm) |
375 |
Dimensions (mm) LxWxH |
42x42x48 |
Detent Torque (kg-cm) |
0.28 |
Frame Size (mm) |
42 x 42 |
Inductance Accuracy |
20% |
Resistance Accuracy |
10% |
Step Angle Accuracy |
5% |
Shaft Type |
D-type |
Shaft Diameter (mm) |
5 |
Shaft Length (mm) |
20 |
Cable Length (cm) |
72 |
