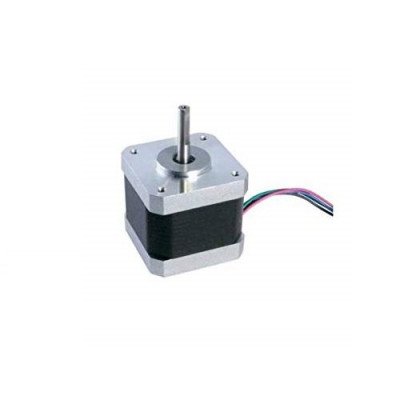

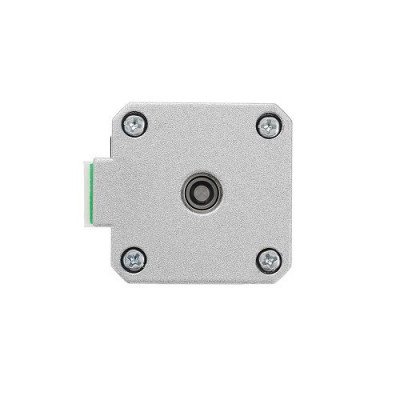

Features :
- Input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing.
- Control of this motor is less costly because of the exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
Specifications:
| Motor Type |
Single Shaft |
| Step Angle |
1.8 degree |
| Holding Torque (Kg-Cm) |
4.8 |
| Operating Voltage (VDC) |
3.1 |
| Supply Current (A) |
2.5 A/Phase |
| No. of Leads |
4 |
| Inductance (mH/Phase) |
1.8 |
| Resistance |
1.25 ohms |
| Rotor Inertia (gm-cm2) |
68 |
| Weight (gm) |
366 |
| Dimensions (mm) LxWxH |
42x42x48 |
| Detent Torque (kg-cm) |
0.28 |
| Frame Size (mm) |
42 x 42 |
| Inductance Accuracy |
±20% |
| Resistance Accuracy |
±10% |
| Shaft Type |
D-type |
| Shaft Diameter (mm) |
5-(Round-side); 4.7-(D-side) |
| Shaft Length (mm) |
22 |
| Step Angle Accuracy |
±5% |
| Cable Length (cm) |
72 |
