Specifications and Features:

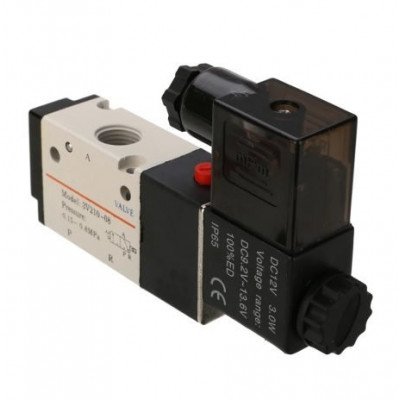

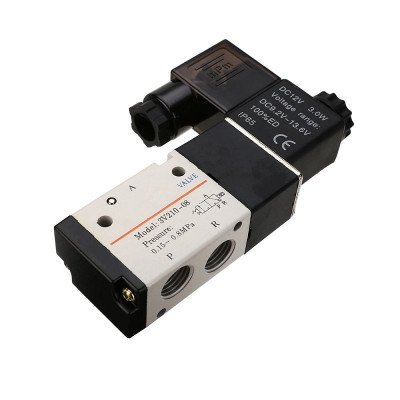

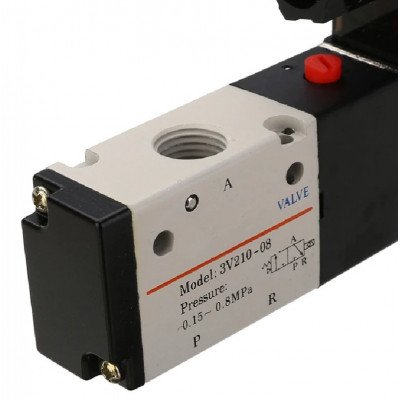

1. Model: 3V210-08
2. Biggest Withstanding Pressure: 12kgf/c
3. Working Medium: Air(40 micron cleaned)
4. Power Consumption: DC12V, 2.5W
5. Motion Pattern: Internal Pilot
6. Protection Class: IP65(DIN40050)
7. Adapters Caliber: Air-in=Air Out=PT1/8, Air-in=Air Out=PT2/8, Air-in=Air Out=PT3/8
8. Electrifying Model: Box Type
9. The Position Counting: Three-mouth Two-position
10. Body Material: Al Alloy
11. Ambient Temperature: 5~60(23~140)
12. Highest Action Frequency: 5/sec
13. Effective Section Area: 14(Cv=0.78), 16(Cv=0.89), 25(Cv=1.39), 30(Cv=1.67)
14. Insulation: Class F
15. Lube Cation: No Required
16. Voltage Range: -15%~+10%
17. Working Pressure: 1.5~8.0 kgf/c
18. Response Time: 0.05s
