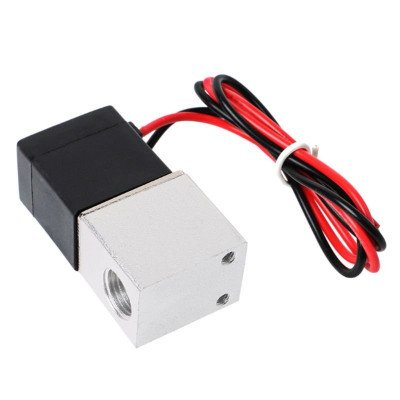

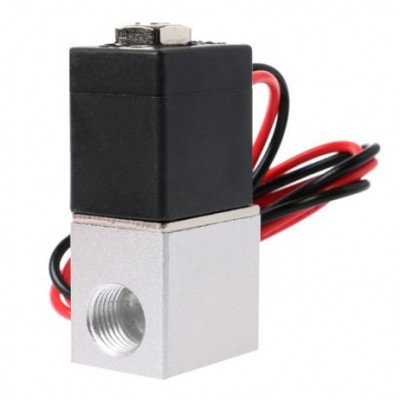

Specifications:
- Valve Type: 2 Way Normally Open
- Port Size: 1/8 NPT Female Port
- Coil Voltage: DC 24V
- Service Media: Air, Gas, Liquid, Water
- Operation Model: Direct Acting
- Flow Model: Uni-Directional
- Flow Rate: 0.23Cv (Fluid Flow)
- Response Time: Less than 50 ms
- Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
- Operating Temperature: -10 to 80 C
- Coil Power: 6.5W
