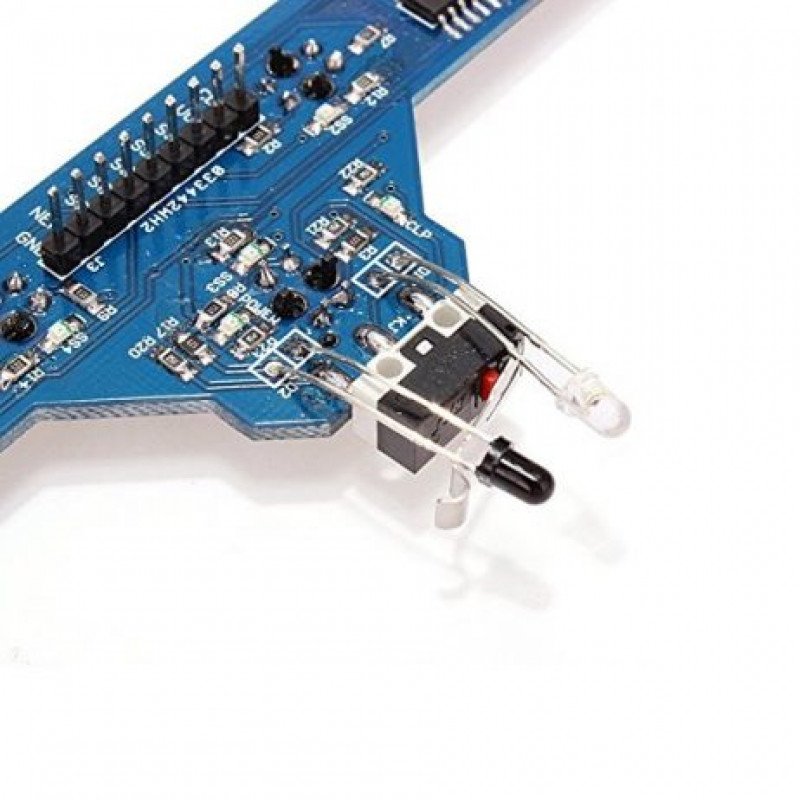

The BFD-1000 Five-Channel Infrared Tracking Sensor Module is a versatile sensor board designed specifically for line-following robots. It combines five high-sensitivity infrared tracking sensors and additional infrared distance and touch detection sensors, allowing robots to adapt easily to various environments and navigation challenges.

Optimized for detecting black or white lines, including intersections and complex patterns, the BFD-1000 delivers precise recognition with minimal environmental interference. Key features include:

1. Five high-sensitivity IR sensors for accurate line tracking on black or white surfaces.

2. Adjustable infrared barrier sensor for obstacle detection with tunable range.

3. Integrated touch detection sensor, simplifying mechanical design.

4. Digital output signals (0 or 1) for easy MCU interfacing.

5. LED indicators for each sensor, aiding in real-time debugging and monitoring.

6. Wide voltage support (3.0–5.5V), compatible with most microcontroller systems.

7. No manual adjustment needed within a tracking range of 0.5mm to 40mm.

Compact and reliable, the BFD-1000 is ideal for complex line-following applications and advanced robot navigation projects.
