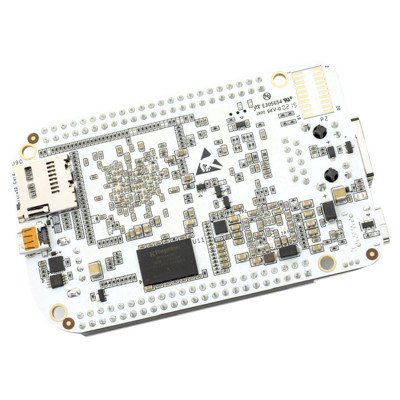

BeagleBone AI is a high-end Single Board Computer aimed at developers interested in implementing machine-learning and computer vision with simplicity. BeagleBone AI includes a dual-core ARM Cortex-A15 running at 1.5 GHz, 16GB onboard eMMC flash, a SuperSpeed USB Type-C interface, Gigabit Ethernet and dual-band wireless connectivity. BeagleBone AI simplify the use of artificial intelligence (AI) in daily industrial, commercial and home applications via the TI C66x digital-signal-processor (DSP) cores, two dual-core ARM Cortex-M4 co-processors for real-time control, two dual-core Programmable Real-Time Unit (PRU) subsystems and four Embedded Vision Engines(EVEs) supported through an optimized TIDL machine learning OpenCL API with pre-installed tools. The BeagleBone AI also has an additional dual-core PowerVR SGX544 3D GPU and a Vivante GC320 2D graphics accelerator.
Built on the proven BeagleBoard.org open-source Linux approach, BeagleBone AI fills the gap between small SBCs and more powerful industrial computers. Based on the Texas Instruments AM5729, developers have access to the powerful SoC with the ease of BeagleBone Black header and mechanical compatibility.
Features:
- TI AM5729 Dual-Core ARMCortex-A15 processor running at 1.5GHz
- Dual C66 DSP, Four ARM Cortex-M4, Four PRU, and Four Embedded Vision Engine
- Four Programmable Real-time Units (PRUs)
- Memory: 1GB RAM and 16GB on-board eMMC Flash
- Connectivity: Gigabit Ethernet, 2.4/5GHz WiFi, and Bluetooth
- USB-C for power and superspeed dual-role controller
- Additional USB-A host port
- Audio & Video: microHDMI
- Headers compatible with many BeagleBone Cape add-on boards
- Zero-download out-of-box software experience
Specifications :-
| Processor |
TI AM5729 Dual Core ARMCortex-A15 |
| RAM |
1GB DDR3L |
| Flash Memory |
16 GB |
| Length (mm) |
90 |
| Width (mm) |
54 |
| Height (mm) |
15 |
| Weight (gm) |
50 |
