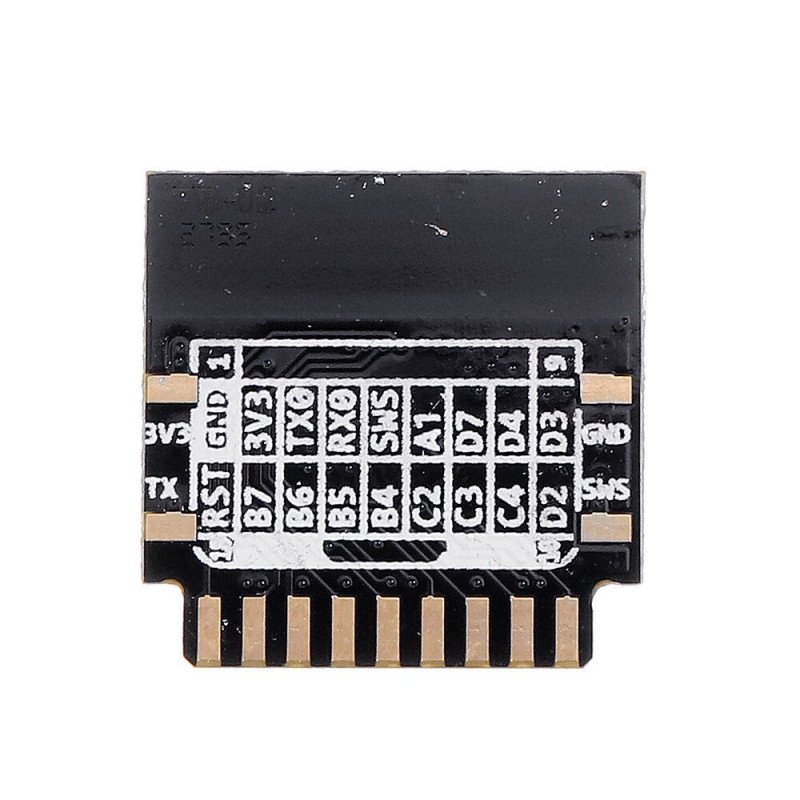

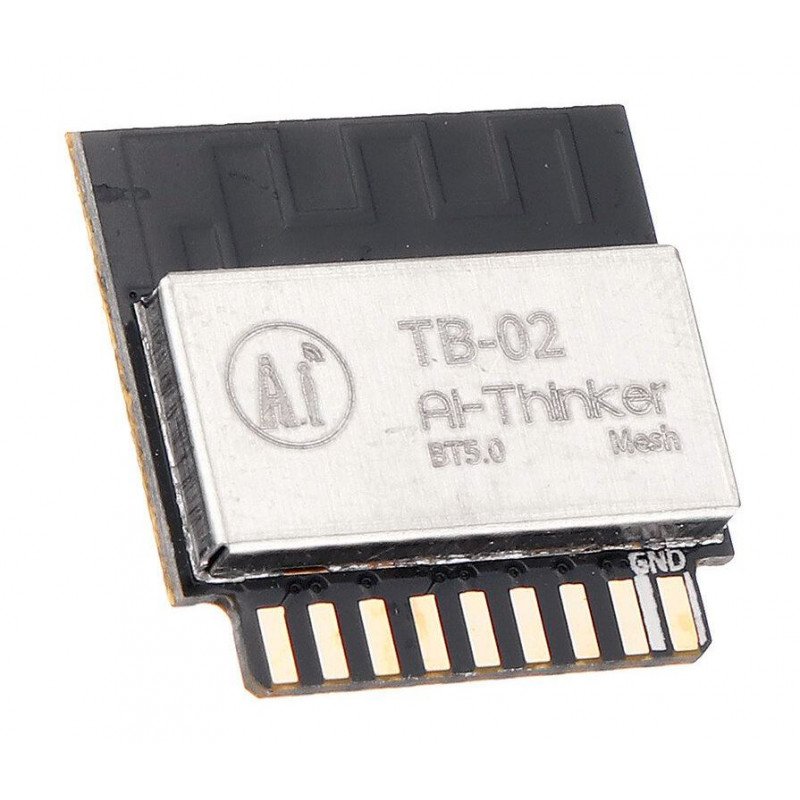

The TB-02 is a Bluetooth-enabled intelligent lighting module based on the TLSR8250F512 chip, designed for low-power Bluetooth 5.0 and fully compatible with Tmall Genie Mesh. It supports direct control by Tmall Genie without the need for a gateway and enables Bluetooth Mesh networking for peer-to-peer communication. Utilizing Bluetooth broadcast, the TB-02 ensures responsive, multi-device control—ideal for smart lighting scenarios requiring low power, low latency, and short-range wireless data communication.

Key Features:

• Direct control via Tmall Genie—no gateway required

• 1.6mm pitch DIP18 vertical solder package

• 6-channel PWM output

• Built-in antenna—no external design needed

• Adjustable brightness: 5%–100% duty cycle

• Default 50/50 cool-warm color balance

• 1kHz PWM output frequency

• Night light functionality

• Wall switch toggles color temperature

Perfect for smart lighting and Bluetooth Mesh-based control systems.
