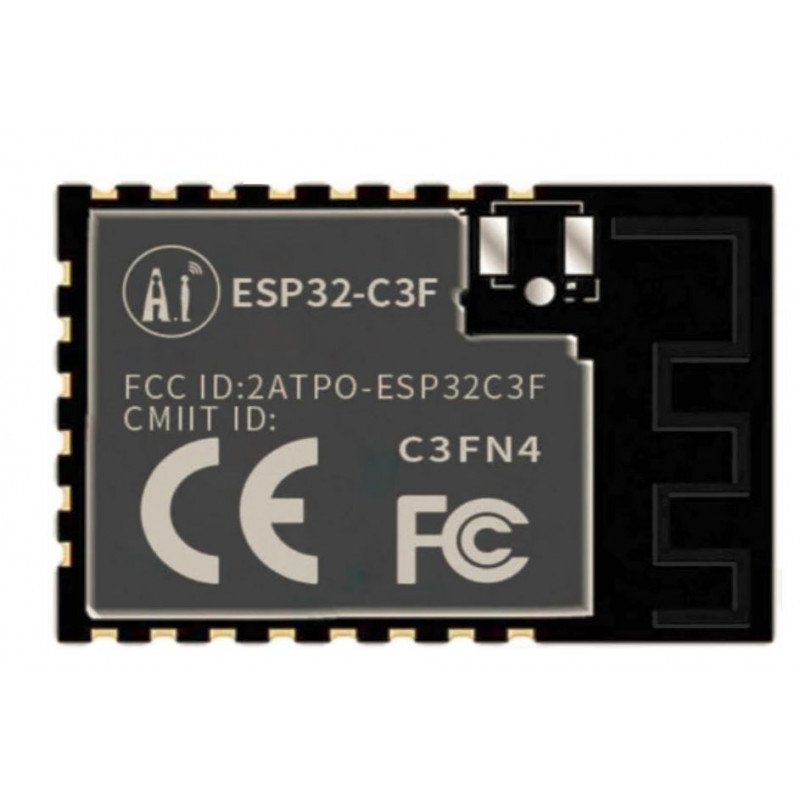

ESP32-C3F Wi-Fi + BLE Module | Ai-Thinker

The ESP32-C3F is a Wi-Fi and Bluetooth Low Energy (BLE) module developed by Ai-Thinker, based on the ESP32-C3 system-on-chip (SoC). Designed for IoT, mobile, wearable, and smart home applications, this compact module delivers excellent RF performance and ultra-low power consumption.

At its core is a 32-bit RISC-V single-core processor running at up to 160 MHz, capable of standalone operation without the need for an external microcontroller. It includes 400 KB SRAM, 384 KB ROM, 8 KB RTC SRAM, and 4 Mbit of built-in Flash memory, with support for additional external Flash via standard interfaces.

The ESP32-C3F supports IEEE 802.11b/g/n Wi-Fi and Bluetooth 5.0, including BLE Mesh. Bluetooth data rates include 125 Kbps, 500 Kbps, 1 Mbps, and 2 Mbps, with support for extended advertising, multi-broadcasting, and flexible channel selection.

Engineered for energy efficiency, the module offers several low-power operation modes, as well as advanced features like fine clock gating, dynamic voltage and frequency scaling, and adjustable RF output power—balancing performance, range, and power consumption for a wide range of applications.

Key Features:

• Processor: 32-bit RISC-V core, up to 160 MHz

• Wireless: Wi-Fi (802.11b/g/n), Bluetooth 5.0 with BLE Mesh

• Memory: 400 KB SRAM, 384 KB ROM, 8 KB RTC SRAM, 4 Mbit embedded Flash (expandable)

• Bluetooth Rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

• Interfaces: UART, PWM, SPI, I²S, I²C, ADC, temperature sensor

• GPIOs: 15 multifunctional pins

• Security: AES, SHA, RSA, RNG, HMAC, Digital Signature, Flash Encryption, Secure Boot
