Features:
- Compact and convenient.
- Easily installed and serviced
- Precise and reliable.
- The installation direction can be arbitrary Angle
- Pressure-regulating valve (steady flow valve) function similar to the water flow switch
- Not only can it provide a steady flow, but it also prevents dry burning.
- Suitable for fluids like water, oil, air.
Specifications:
| Model |

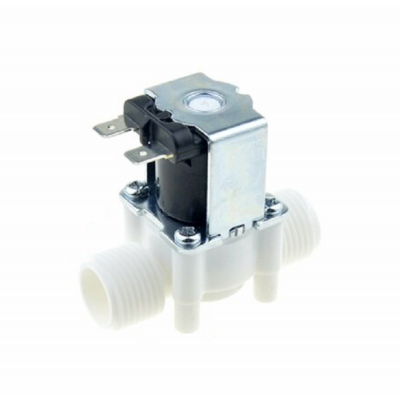

24V DC 1/2" Solenoid Valve |
| Rated Operating Voltage (VDC) |
24 |
| Rated Current (mA) |
600 |
| Operation Mode |
Normally Closed |
| Power Consumption (Watt) |
8 |
| Pressure |
0.02- 0.8Mpa |
| Energized forms |
Intermittent |
| Inlet and outlet Diameter |
Hose barbs for 1/2" (outer diameter) hose |
| Length (mm) |
84 |
| Height (mm) |
57 |
| Weight (gm) |
100 |
