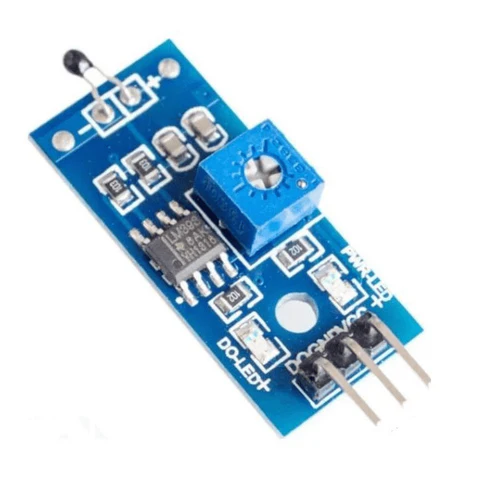

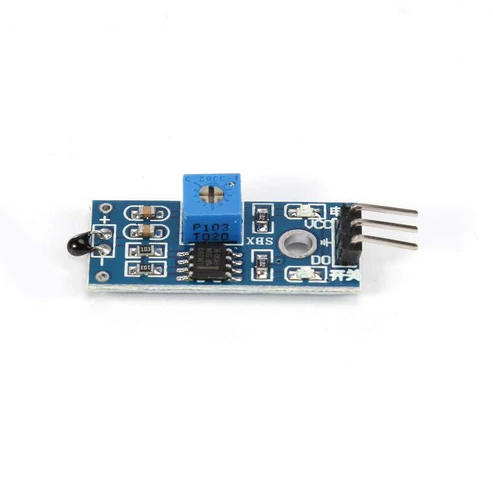

This electronic part generally used to detect the temperature of the surrounding environment. Through potentiometer adjustment, it is possible to change the temperature detection threshold.DO output can be directly connected to the microcontroller to detect high and low, by detecting temperature changes in the environment. The temperature detection range of the module is between 20 and 80 degrees Celsius. This sensor module can be replaced with a line temperature sensor for controlling the water temperature, water tank, etc.
Specifications:
| Working voltage | 3.3 - 5VDC |
| Voltage Comparator | LM393 comparator |
| Digital switching output | 0 and 1 |
| Temperature Detection Range | 20 and 80 degrees Celsius |
| Dimensions | 3 x 3 x 1cms |
| Weight | 5 grams |
