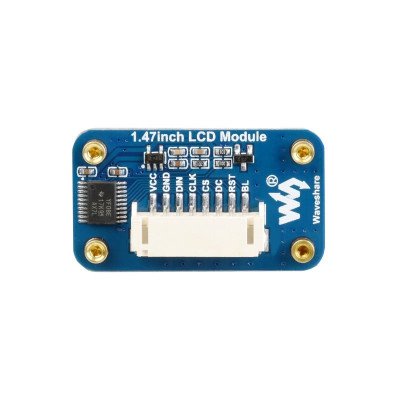

Waveshare 1.47inch LCD Display Module, Rounded Corners, 172320 Resolution, SPI Interface. The built-in controller used in this LCD is ST7789V3, which is an LCD controller with 240 x RGB x 320 pixels, while the pixels of this LCD itself are 172(H)RGB x 320(V). There are two types of horizontal and vertical screens, so the internal RAM of the LCD is not fully used.
The LCD supports 12-bit, 16-bit and 18-bit input color formats per pixel, namely RGB444, RGB565, RGB666 three color formats, this demo uses RGB565 color format, which is also a commonly used RGB format
The LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster
Features:
- 172320 resolution, 262K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
