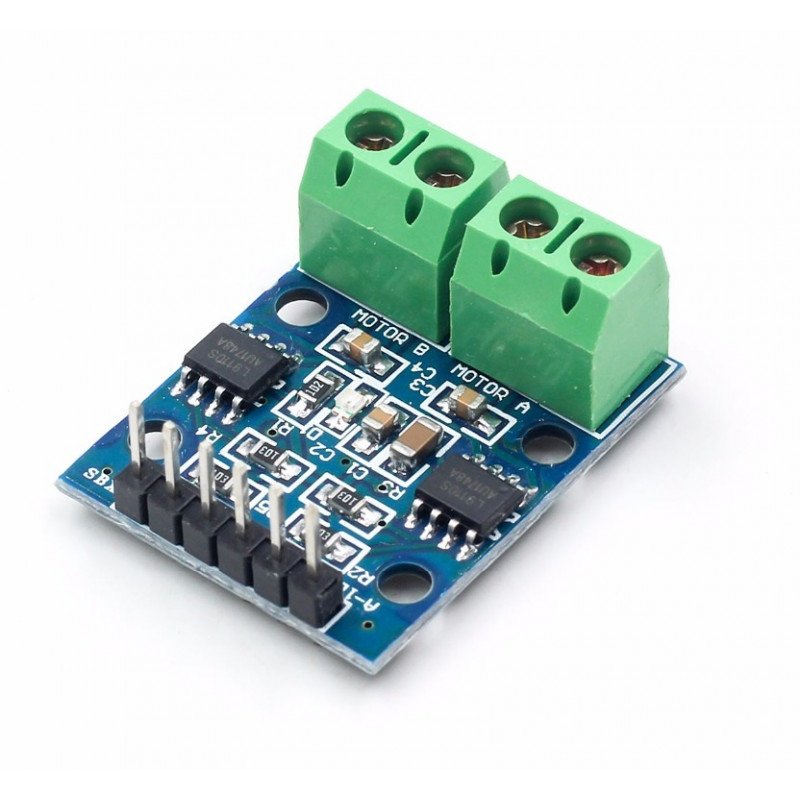

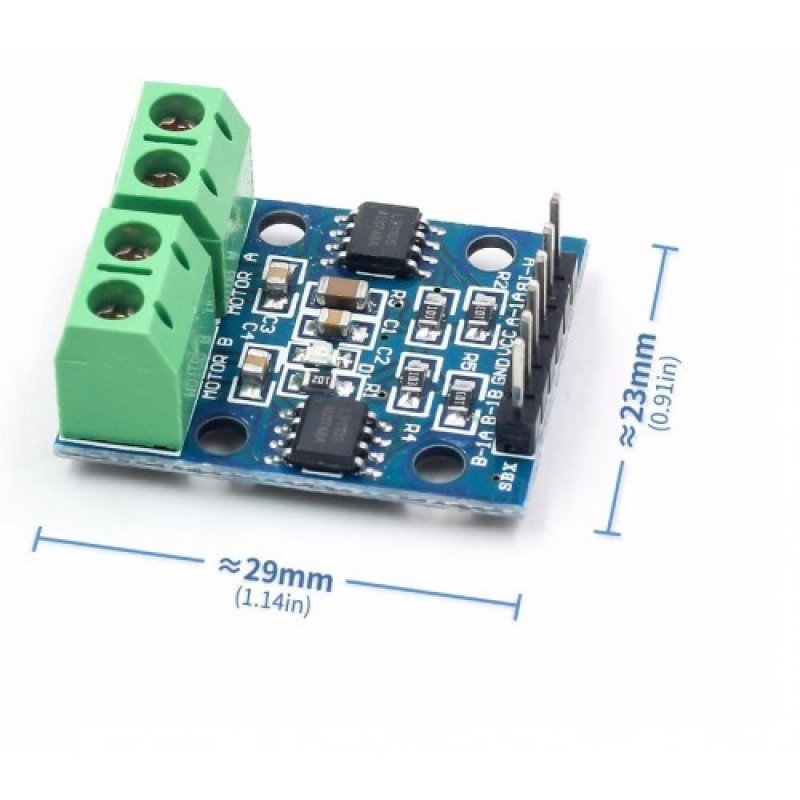

The L9110S Dual Channel H-Bridge Motor Driver Module is a compact and efficient solution for controlling small robots and motorized projects. Powered by two L9110 driver ICs, it can independently drive two DC motors with up to 800mA continuous current each.

Operating from 2.5V to 12V, it’s compatible with both 3.3V and 5V microcontrollers. Connection to a microcontroller is made via female header pins, while motors are attached using screw terminals for secure wiring.

The module supports PWM (Pulse Width Modulation) for speed control and digital signals for direction. It can also control a four-line, two-phase stepper motor, offering versatility in motion control. Four mounting holes make it easy to secure in robotics and DIY setups.
